Challenge information
- Challenge type: Reverse
- Rating: Hard 20-30 hours
- Challenge inputs:
- a 64-bits ELF binary
alaideand some explanations surrounding it, namely that it’s a smartcontract provider - some sort of memory dump
contract_memory.txtreproduced below - the next megolm key dump

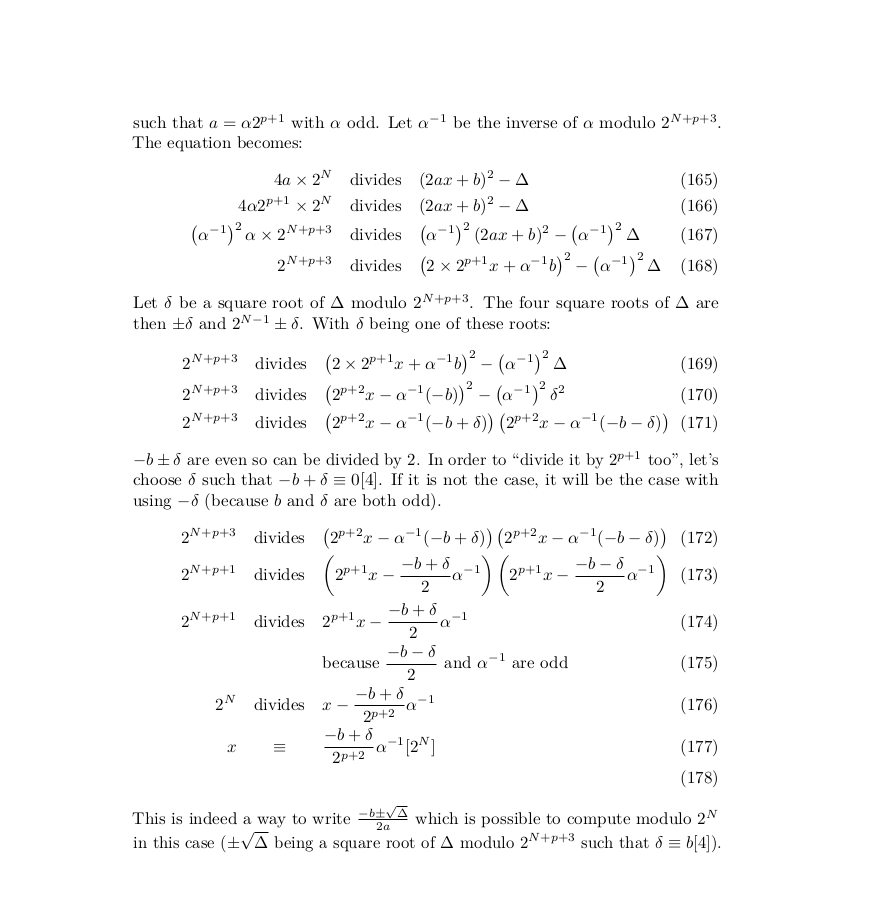

fraiseglacee.megolm_keys.txt - a link to a mathematics paper on the subject of modular arithmetics
- a 64-bits ELF binary
Getting more information
The contract memory dump looks like this (rearranged using a rule I’ll describe afterwards):
Memory slot 0000000000000000000000000000000000000000000000000000000000000000 = 0000000099EB8BB96FF8580A5245205230305421B42CC50912EA778600000020
Memory slot A6EEF7E35ABE7026729641147F7915573C7E97B47EFA546F5F6E3230263BCB49 = 00000000000000000000000000000000BD77247EFD5026120EC466DC0BF48F78
Memory slot CC69885FDA6BCC1A4ACE058B4A62BF5E179EA78FD58A1CCD71C22CC9B688792F = 0000000000000000000000000000000042D91B8FD115E27863C53462655BCA4B
Memory slot D9D16D34FFB15BA3A3D852F0D403E2CE1D691FB54DE27AC87CD2F993F3EC330F = 000000000000000000000000000000002D4B53BD572BC0E509147E49720F2DBB
Memory slot 7DFE757ECD65CBD7922A9C0161E935DD7FDBCC0E999689C7D31633896B1FC60B = 000000000000000000000000000000009B0656AF78A7CCC5FA58ECE282AFB5BC
Memory slot EDC95719E9A3B28DD8E80877CB5880A9BE7DE1A13FC8B05E7999683B6B567643 = 000000000000000000000000000000009A58B3845230BCCDA2D68691B0F85CD3
Memory slot E2689CD4A84E23AD2F564004F1C9013E9589D260BDE6380ABA3CA7E09E4DF40C = 000000000000000000000000000000007AACC07CC54BE008851A06A6882974D4
Memory slot 8F331ABE73332F95A25873E8B430885974C0409691F89D643119A11623A7924A = 0000000000000000000000000000000010D4DBA09B5D1C148B11EFF397A19205
Memory slot DC686EC4A0FF239C70E7C7C36E8F853ECED3BC8618F48D2B816DA2A74311237E = 000000000000000000000000000000003D66028DE2A301537EB6A37E0A7D9578
Memory slot 4DB623E5C4870B62D3FC9B4E8F893A1A77627D75AB45D9FF7E56BA19564AF99B = 00000000000000000000000000000000EB0BA52C2D94D5E994A0FD02953CA525
Memory slot 74A5FBCB419AB7DBACBB2C92A4E163730F0DA5C72B911DEECF4F05A6B327D0A4 = 00000000000000000000000000000000BFF717B395416071B54CD1E19274B4D8
Memory slot 2A32391A76C35A36352B711F9152C0D0A340CD686850C8EF25FBB11C71B89E7B = 0000000000000000000000000000000009BD86249E977C79655D20569DCD3571
Memory slot FC80CD5FE514767BC6E66EC558E68A5429EA70B50FA6CAA3B53FC9278E918632 = 00000000000000000000000000000000858E2D7034EA8DBDA7097DDF36428E2A
Memory slot 23BF72DF16F8335BE9A3EDDFB5EF1C739B12847D13A384EC83F578699D38EB89 = 0000000000000000000000000000000090650EDF445FD692FAEC1AE30936F9C4
Memory slot 86B3FA87EE245373978E0D2D334DBDE866C9B8B039036B87C5EB2FD89BCB6BAB = 00000000000000000000000000000000D6F457E826D92CD3B122417D728927B3
Memory slot 57AAAFA65C4E563D39FFF90096A5FA76D42117F53D87EF870784E64D63A8A16B = 0000000000000000000000000000000075863546676FC6615A15F2C6C09F4933
Memory slot 12BD632FF333B55931F9F8BDA8B4ED27E86687F88C95871969D72474FB428C14 = 00000000000000000000000000000000AC530B4036B0AFCD3E21EA92B858F6A9
Memory slot 755311B9E2CEE471A91B161CCC5DEED933D844B5AF2B885543CC3C04EB640983 = 000000000000000000000000000000009189E739289CEA74276B13D26DBE09B4
Memory slot C8D233A0EBEF7C9A17D2B0B17EEA62CCA39002A128CCF419119B4A1A1F1E7428 = 000000000000000000000000000000005BDDAAE22D5F3DA9B536582CB9A17298
Memory slot 40165E7164257B249280BF839A50283D248062ED7B0E6D8820CB6C506BFCF7D3 = 00000000000000000000000000000000BCE46085EA23920E095E54F51316397F
Memory slot 41CB80F82BADDDD72E38FDA86A7CBBA38FAFD9735EF98C7795ABBBAF2B149562 = 00000000000000000000000000000000D7D98A01C0DFE62BB863FD73F98EBE62
Memory slot 467A5C61216CAD3003BC3395C339807C735D5C3D989CA4BC0EF2A37E14CE2679 = 0000000000000000000000000000000045884FAA578E3CA131CBEF423EA3F68C
Memory slot 4E788733FE0BFF9AF5F3E3A353367490C603293E53707FE7E4E0071B9ED497D6 = 00000000000000000000000000000000BB8476D9103C116AF663106A9E2DB2F4
Memory slot 2B00120B81607971383F6F5676C1551D6BB27BE3F263689FD3630E1A5BE14018 = 000000000000000000000000000000008B656CF9792301C29A786BAD639C3919
Memory slot BDBFD5FE12B0725F9A86EFFBF0320821EB71455F8B2A1271FAE01B3621E6F172 = 000000000000000000000000000000003BD1AF68A64ADFA69329E9995FFE9C37
Memory slot 80F14989282B60FA53CDD4F20DDDF40419D0398091709CCEEF4EA6608CB53A86 = 00000000000000000000000000000000348912D16CDFF19B53632544E24155CC
Memory slot 2480FE25EE21F0B2BC289CCFF6DF415947190B288094AB9F0CBD50F7B814FD5E = 00000000000000000000000000000000C1E6D58E626E0B544310B623021C4E9F
Memory slot DDD2ED02835F51D041D738F145BF914E284838547C9BCC952EA4F9DE82C9F093 = 000000000000000000000000000000000DF3FD6B4949300E52D624E02E1DCEB0
Memory slot D6E773D900EC812417038DA9BAF6D960FCC201DD4BFA0D6323C29C7F6D7D874A = 0000000000000000000000000000000038095B8DCA7F3080760F2E79D4DEAD87
Memory slot 02D9F8353BCA53BC9B195AA186AB6D98B49A9120C00257EE2C7D860C26F864EA = 0000000000000000000000000000000050B94C75C93671A2CE180634059D9800
Memory slot 31FF9DA46623DED696608610C3749320B1CB2C2DFD644B1139DA5367A8E616CF = 000000000000000000000000000000005790098E78097C66F47F1833A8329758
Memory slot 68FB8E7CAD479CCC9244A179D64897454189FD25DB04E15D3A5135327A17597B = 0000000000000000000000000000000098F6D5A0E9039AF0B549FBED480C324C
Memory slot AF2AFAF35AD6DA1368C28C91BA52A84B6FC26E5AA0D9B26DC4FA0373E4D12C30 = 0000000000000000000000000000000039426851D22DDF6C6D3DD9627DE11F8C
Running the binary after reading its help menu gives us this output:
gquere@sandbox ~/sstic2020/step6 ./alaide local ABCD
Deploying...
Smart contract has been deployed.
Sending message part 1/32 ...
[ .. snip .. ]
Sending message part 32/32 ...
Contract memory is now :
Memory slot 755311B9E2CEE471A91B161CCC5DEED933D844B5AF2B885543CC3C04EB640983 = 000000000000000000000000000000007C931ACB5FBC85C657EE1082D986C5A8
Memory slot 68FB8E7CAD479CCC9244A179D64897454189FD25DB04E15D3A5135327A17597B = 00000000000000000000000000000000ECDBCA6DBE4D33EC06B2E94E88350EA2
Memory slot A6EEF7E35ABE7026729641147F7915573C7E97B47EFA546F5F6E3230263BCB49 = 000000000000000000000000000000003CFC328DD57D2BDE3366197B4646A879
[.. snip ..]
Memory slot 2A32391A76C35A36352B711F9152C0D0A340CD686850C8EF25FBB11C71B89E7B = 000000000000000000000000000000005EEAC15DF4B21FE16933CC1FA2054EBE
Memory slot 2B00120B81607971383F6F5676C1551D6BB27BE3F263689FD3630E1A5BE14018 = 000000000000000000000000000000009D6B52891F4F8B7444C8E873168D8C8F
Done.
Alright so we can conclude that the contract_memory.txt we’ve been given is a sample output of the program. It’s intuitive that we need to recover the input message given the blockchain’s memory.
After fiddling a bit in the binary’s disassembly there’s a hardcoded disabled debug mode. I just patched the binaries instructions so that it’s always enabled. Fortunately the binary does not have any dynamic tampering measures.
The new output is:
gquere@sandbox ~/sstic2020/step6/test ./alaide_patch_debug local ABCD
Deploying...
Smart contract has been deployed.
Deployment transaction hash is fff91f84f6e1e00446a289bf1dfcec678bb1c743210e7194586fc8e6e2087ef8
Contract address is 0xd907bb4b12a17fc3b1894ac9cd5663d778e98466
Contract data is 0x60806040523480156100115760006000fd5b506040516106c03803806106c0833981810160405260208110156100355760006000fd5b81019080805190602001909291905050505b6000600060006101000a81548163ffffffff021916908363ffffffff16021790555080674d3044205351554118600060046101000a81548167ffffffffffffffff021916908367ffffffffffffffff160217905550600060049054906101000a900467ffffffffffffffff16600060146101000a81548167ffffffffffffffff021916908367ffffffffffffffff1602179055506752452052303054216000600c6101000a81548167ffffffffffffffff021916908367ffffffffffffffff1602179055505b50610113565b61059e806101226000396000f3fe60806040523480156100115760006000fd5b50600436106100825760003560e01c8063b5b6d2a81161005c578063b5b6d2a8146100ee578063d1e8507b14610134578063e1ef28781461019b578063fe9272cc146101cd57610082565b806326987b6014610088578063863b2769146100b2578063a67f8c90146100e457610082565b60006000fd5b6100906101ff565b604051808263ffffffff1663ffffffff16815260200191505060405180910390f35b6100ba610215565b604051808267ffffffffffffffff1667ffffffffffffffff16815260200191505060405180910390f35b6100ec61022f565b005b610132600480360360408110156101055760006000fd5b81019080803567ffffffffffffffff169060200190929190803560ff16906020019092919050505061031b565b005b6101616004803603602081101561014b5760006000fd5b8101908080359060200190929190505050610500565b60405180826fffffffffffffffffffffffffffffffff166fffffffffffffffffffffffffffffffff16815260200191505060405180910390f35b6101a3610534565b604051808267ffffffffffffffff1667ffffffffffffffff16815260200191505060405180910390f35b6101d561054e565b604051808267ffffffffffffffff1667ffffffffffffffff16815260200191505060405180910390f35b600060009054906101000a900463ffffffff1681565b600060149054906101000a900467ffffffffffffffff1681565b6000600090505b60408110156103175760006000600c9054906101000a900467ffffffffffffffff16600060149054906101000a900467ffffffffffffffff1616905060008190506000600190505b60408110156102a957808367ffffffffffffffff16901c8218915081505b808060010191505061027e565b50603f8167ffffffffffffffff16901b6001600060149054906101000a900467ffffffffffffffff1667ffffffffffffffff16901c17600060146101000a81548167ffffffffffffffff021916908367ffffffffffffffff16021790555050505b8080600101915050610236565b505b565b6020600060009054906101000a900463ffffffff1663ffffffff161015156103435760006000fd5b60008160ff1690506000600090505b60088160ff1610156103ac576008810260ff168267ffffffffffffffff16901b84189350835060078267ffffffffffffffff16901c60fe60018467ffffffffffffffff16901b1617915081505b8080600101915050610352565b506103bb61022f63ffffffff16565b6000600060149054906101000a900467ffffffffffffffff1690508084189350835060006f854e9fb4699ed8f22fd89ebe3f17f7f6905060006fd677105721b51a080288a52f7aa48517905060008667ffffffffffffffff1682028767ffffffffffffffff168867ffffffffffffffff16850202016fffffffffffffffffffffffffffffffff1690506fffffffffffffffffffffffffffffffff811660016000506000600060009054906101000a900463ffffffff1663ffffffff16815260200190815260200160002060006101000a8154816fffffffffffffffffffffffffffffffff02191690836fffffffffffffffffffffffffffffffff1602179055506000600081819054906101000a900463ffffffff168092919060010191906101000a81548163ffffffff021916908363ffffffff1602179055505050505050505b5050565b600160005060205280600052604060002060009150909054906101000a90046fffffffffffffffffffffffffffffffff1681565b600060049054906101000a900467ffffffffffffffff1681565b6000600c9054906101000a900467ffffffffffffffff168156fea264697066735822122004b21aaa5ce3676e8d742309383f5e711de6f2cc148188fffd716a54d070697964736f6c63430006000033000000000000000000000000000000000000000000000000d65120381e4a7842
Sending message part 1/32 ...
Transaction data is 0xb5b6d2a8000000000000000000000000000000000000000000000000563ec972fd8114ad000000000000000000000000000000000000000000000000000000000000005c
Part 1/32 is sent. Hash is 61116df7d213cdd909ed73329cdd5d291adeeab8d3a15d465d0e331de5045bb2
Sending message part 2/32 ...
Transaction data is 0xb5b6d2a8000000000000000000000000000000000000000000000000af25cfb229f75b9a00000000000000000000000000000000000000000000000000000000000000e2
Part 2/32 is sent. Hash is ab000fdfd85824e73216ef877641dfc3d29343f990d21ea21875aa48a9631f64
[.. snip ..]
Sending message part 32/32 ...
Transaction data is 0xb5b6d2a8000000000000000000000000000000000000000000000000bd3bc312adbf3b750000000000000000000000000000000000000000000000000000000000000081
Part 32/32 is sent. Hash is a7c1be513a85b85c1cd1fb0be6ac0185af02916a28abb27424e42e308f417516
Contract memory is now :
Memory slot 755311B9E2CEE471A91B161CCC5DEED933D844B5AF2B885543CC3C04EB640983 = 0000000000000000000000000000000073CB80900C0E6C2103DFB04ABD86A464
Memory slot 68FB8E7CAD479CCC9244A179D64897454189FD25DB04E15D3A5135327A17597B = 00000000000000000000000000000000D41C28D05A8AB78D425A20878FD11FCA
Memory slot A6EEF7E35ABE7026729641147F7915573C7E97B47EFA546F5F6E3230263BCB49 = 00000000000000000000000000000000DACB3750A55124B892060ABE51A83820
Memory slot 02D9F8353BCA53BC9B195AA186AB6D98B49A9120C00257EE2C7D860C26F864EA = 0000000000000000000000000000000025D6BC8D1AA5497891B7DD33F0516806
Memory slot 74A5FBCB419AB7DBACBB2C92A4E163730F0DA5C72B911DEECF4F05A6B327D0A4 = 0000000000000000000000000000000045C37728C86F9882FA436A15EB1A5F49
Memory slot 86B3FA87EE245373978E0D2D334DBDE866C9B8B039036B87C5EB2FD89BCB6BAB = 00000000000000000000000000000000CD777F0908B89D69FC321D939306E304
Memory slot 0000000000000000000000000000000000000000000000000000000000000000 = 00000000FE64575E4A513EA552452052303054219B6164184D1B2D0300000020
Memory slot 467A5C61216CAD3003BC3395C339807C735D5C3D989CA4BC0EF2A37E14CE2679 = 000000000000000000000000000000001DA58B8915C2DAECFC827FA4C2636C11
Memory slot AF2AFAF35AD6DA1368C28C91BA52A84B6FC26E5AA0D9B26DC4FA0373E4D12C30 = 000000000000000000000000000000000163966F955584F03E63E8333040A5FD
Memory slot 31FF9DA46623DED696608610C3749320B1CB2C2DFD644B1139DA5367A8E616CF = 00000000000000000000000000000000D89CE001B0C2DA55F565D44E7891339E
Memory slot 4E788733FE0BFF9AF5F3E3A353367490C603293E53707FE7E4E0071B9ED497D6 = 000000000000000000000000000000007A87CA2CF56821DF593CB4BA8CFB96DD
Memory slot 80F14989282B60FA53CDD4F20DDDF40419D0398091709CCEEF4EA6608CB53A86 = 000000000000000000000000000000004AEC50EDAB823F9FF917CDADEDCA17F2
Memory slot CC69885FDA6BCC1A4ACE058B4A62BF5E179EA78FD58A1CCD71C22CC9B688792F = 00000000000000000000000000000000B1024DFE92D77D1C209286A6E4DC62CD
Memory slot C8D233A0EBEF7C9A17D2B0B17EEA62CCA39002A128CCF419119B4A1A1F1E7428 = 00000000000000000000000000000000C40AD3A30DF8866971A311953D96C4D1
Memory slot BDBFD5FE12B0725F9A86EFFBF0320821EB71455F8B2A1271FAE01B3621E6F172 = 000000000000000000000000000000009EB202FEBB9D40E1E6657DBEE21E732B
Memory slot EDC95719E9A3B28DD8E80877CB5880A9BE7DE1A13FC8B05E7999683B6B567643 = 000000000000000000000000000000002F7BA0E4D59694C946B23324C49F045C
Memory slot 41CB80F82BADDDD72E38FDA86A7CBBA38FAFD9735EF98C7795ABBBAF2B149562 = 0000000000000000000000000000000035850BD94DB6D3B95A0677CC5D1ABE8E
Memory slot 7DFE757ECD65CBD7922A9C0161E935DD7FDBCC0E999689C7D31633896B1FC60B = 000000000000000000000000000000000D6E84B0A557ACBC2539082164A7AE84
Memory slot D6E773D900EC812417038DA9BAF6D960FCC201DD4BFA0D6323C29C7F6D7D874A = 00000000000000000000000000000000097BB95B953D1CB58BC8D542E5B128BF
Memory slot 2480FE25EE21F0B2BC289CCFF6DF415947190B288094AB9F0CBD50F7B814FD5E = 00000000000000000000000000000000D23096F241A5BF075A92739262DE9FE4
Memory slot 8F331ABE73332F95A25873E8B430885974C0409691F89D643119A11623A7924A = 0000000000000000000000000000000069F61911C2C8CE452706E7A19F77F77A
Memory slot 57AAAFA65C4E563D39FFF90096A5FA76D42117F53D87EF870784E64D63A8A16B = 0000000000000000000000000000000013F7985592060E8AB58E94CCD91215A5
Memory slot D9D16D34FFB15BA3A3D852F0D403E2CE1D691FB54DE27AC87CD2F993F3EC330F = 00000000000000000000000000000000601F5E86013F153B214ABEDD1F301957
Memory slot E2689CD4A84E23AD2F564004F1C9013E9589D260BDE6380ABA3CA7E09E4DF40C = 00000000000000000000000000000000A9D1366AD7B300FEAA82E23FF4E99B00
Memory slot 23BF72DF16F8335BE9A3EDDFB5EF1C739B12847D13A384EC83F578699D38EB89 = 00000000000000000000000000000000C229D1A89C2A5C3D6277F2E2ED0EDC0E
Memory slot 40165E7164257B249280BF839A50283D248062ED7B0E6D8820CB6C506BFCF7D3 = 00000000000000000000000000000000549502CC0B5267E0B1FF1869250887E5
Memory slot FC80CD5FE514767BC6E66EC558E68A5429EA70B50FA6CAA3B53FC9278E918632 = 000000000000000000000000000000005A6C204A3E7E4F0FE4BCD57F9324C138
Memory slot 12BD632FF333B55931F9F8BDA8B4ED27E86687F88C95871969D72474FB428C14 = 00000000000000000000000000000000866AA1E9FCE258A0E57412E3FCDC04DB
Memory slot 4DB623E5C4870B62D3FC9B4E8F893A1A77627D75AB45D9FF7E56BA19564AF99B = 00000000000000000000000000000000A9D04B013BBB9253A013EF876CBE0227
Memory slot DC686EC4A0FF239C70E7C7C36E8F853ECED3BC8618F48D2B816DA2A74311237E = 00000000000000000000000000000000D086A2C7E836822A019BD6169A606263
Memory slot DDD2ED02835F51D041D738F145BF914E284838547C9BCC952EA4F9DE82C9F093 = 00000000000000000000000000000000A6037603E1F787C3B8975E0186DFC07E
Memory slot 2A32391A76C35A36352B711F9152C0D0A340CD686850C8EF25FBB11C71B89E7B = 00000000000000000000000000000000E84DC61B0EAAC82DC9874FE079C44F66
Memory slot 2B00120B81607971383F6F5676C1551D6BB27BE3F263689FD3630E1A5BE14018 = 000000000000000000000000000000002A50EE6F519D877CC02F5C4A09A990C0
Done.
The binary deploys a smartcontract and interacts with it by calling its ABI (transaction data). After calling it 32 times, it will dump the contract’s memory (on the blockchain).
Thus we can identify two parts to this challenge that will need to be idependently reversed: the binary and the smartcontract.
First part: Alaide Binary
This part was a bit hard because the binary is coded in C++ and is statically compiled against Boost, so there are virtual functions everywhere. You can’t really tell where the original program stops and the framework starts. I tried to use ooanalyzer of the pharos framework to separate the program from the framework, but it segfaulted after 12 hours.
Anyways, I’m summing up this part because it wasn’t that interesting, just a matter of understanding what’s done so that its crypto may be inverted later.
First, a 32 bits random value is generated. This initial random value is very important and is used as an argument when invoking the contract later on, as some form of seed.
The message received is padded until it has the right length. Then it’s scrambled and encrypted by blocks of 4 bytes by xoring the blocks with a value derived from the initial random value read from /dev/urandom.
Finally, the contract is created and the 32 ABI calls we saw earlier are performed.
Second part: Smartcontract
If you’re not familiar with Solidity here are articles that helped me get started:
We can put the whole contract data in a decompiler, such as ethervm.
You can also play along using Remix, a great EVM debugging tool.
There are two parts to a contract data :
- its constructor, from the “magic”
6080to its next appearance - its functions, from the second
6080
The constructor
Let’s take a look at the constructor first using the decompiled output of ethervm:
contract Contract {
function main() {
memory[0x40:0x60] = 0x80;
var var0 = msg.value;
if (var0) { revert(memory[0x00:0x00]); }
var temp0 = memory[0x40:0x60];
var0 = temp0;
var temp1 = code.length - 0x06c0;
var var1 = temp1;
memory[var0:var0 + var1] = code[0x06c0:0x06c0 + var1];
memory[0x40:0x60] = var1 + var0;
if (var1 < 0x20) { revert(memory[0x00:0x00]); }
storage[0x00] = (storage[0x00] & ~0xffffffff) | 0x00;
storage[0x00] = ((memory[var0:var0 + 0x20] ~ 0x4d30442053515541) & 0xffffffffffffffff) * 0x0100 ** 0x04 | (storage[0x00] & ~(0xffffffffffffffff * 0x0100 ** 0x04));
storage[0x00] = (storage[0x00] / 0x0100 ** 0x04 & 0xffffffffffffffff) * 0x0100 ** 0x14 | (storage[0x00] & ~(0xffffffffffffffff * 0x0100 ** 0x14));
storage[0x00] = (storage[0x00] & ~(0xffffffffffffffff * 0x0100 ** 0x0c)) | (0xffffffffffffffff & 0x5245205230305421) * 0x0100 ** 0x0c;
memory[0x00:0x059e] = code[0x0122:0x06c0];
return memory[0x00:0x059e];
}
}
The logical and’s & and ** powers are scary at first sight, but they’re just compilation artifacts due to the native EVM int size being 256 bits and Solidity trying not to waste storage and memory. So if you’re using a bunch of int32 or int64, the compiler will automatically cram these into a single int256.
Once we know this, there’s not much going on in this constructor. It allocates storage memory then writes its seed (received at the very end of the contract) and two magic numbers into it.
The program
Decompiling the second part looks as ugly as the first part:
contract Contract {
function main() {
memory[0x40:0x60] = 0x80;
var var0 = msg.value;
if (var0) { revert(memory[0x00:0x00]); }
if (msg.data.length < 0x04) { revert(memory[0x00:0x00]); }
var0 = msg.data[0x00:0x20] >> 0xe0;
if (0xb5b6d2a8 > var0) {
if (var0 == 0x26987b60) {
// Dispatch table entry for currentIndex()
var var1 = 0x0090;
var var2 = currentIndex();
var temp0 = memory[0x40:0x60];
memory[temp0:temp0 + 0x20] = var2 & 0xffffffff;
var temp1 = memory[0x40:0x60];
return memory[temp1:temp1 + (temp0 + 0x20) - temp1];
} else if (var0 == 0x863b2769) {
// Dispatch table entry for 0x863b2769 (unknown)
var1 = 0x00ba;
var2 = func_0215();
var temp2 = memory[0x40:0x60];
memory[temp2:temp2 + 0x20] = var2 & 0xffffffffffffffff;
var temp3 = memory[0x40:0x60];
return memory[temp3:temp3 + (temp2 + 0x20) - temp3];
} else if (var0 == 0xa67f8c90) {
// Dispatch table entry for 0xa67f8c90 (unknown)
var1 = 0x00ec;
func_022F();
stop();
} else { revert(memory[0x00:0x00]); }
} else if (var0 == 0xb5b6d2a8) {
// Dispatch table entry for 0xb5b6d2a8 (unknown)
var1 = 0x0132;
var2 = 0x04;
var var3 = msg.data.length - var2;
if (var3 < 0x40) { revert(memory[0x00:0x00]); }
func_0105(var2, var3);
stop();
} else if (var0 == 0xd1e8507b) {
// Dispatch table entry for 0xd1e8507b (unknown)
var1 = 0x0161;
var2 = 0x04;
var3 = msg.data.length - var2;
if (var3 < 0x20) { revert(memory[0x00:0x00]); }
var2 = func_014B(var2, var3);
var temp4 = memory[0x40:0x60];
memory[temp4:temp4 + 0x20] = var2 & 0xffffffffffffffffffffffffffffffff;
var temp5 = memory[0x40:0x60];
return memory[temp5:temp5 + (temp4 + 0x20) - temp5];
} else if (var0 == 0xe1ef2878) {
// Dispatch table entry for 0xe1ef2878 (unknown)
var1 = 0x01a3;
var2 = func_0534();
var temp6 = memory[0x40:0x60];
memory[temp6:temp6 + 0x20] = var2 & 0xffffffffffffffff;
var temp7 = memory[0x40:0x60];
return memory[temp7:temp7 + (temp6 + 0x20) - temp7];
} else if (var0 == 0xfe9272cc) {
// Dispatch table entry for 0xfe9272cc (unknown)
var1 = 0x01d5;
var2 = func_054E();
var temp8 = memory[0x40:0x60];
memory[temp8:temp8 + 0x20] = var2 & 0xffffffffffffffff;
var temp9 = memory[0x40:0x60];
return memory[temp9:temp9 + (temp8 + 0x20) - temp9];
} else { revert(memory[0x00:0x00]); }
}
function func_0105(var arg0, var arg1) {
var temp0 = arg0;
arg0 = msg.data[temp0:temp0 + 0x20] & 0xffffffffffffffff;
arg1 = msg.data[temp0 + 0x20:temp0 + 0x20 + 0x20] & 0xff;
if (storage[0x00] & 0xffffffff >= 0x20) { revert(memory[0x00:0x00]); }
var var0 = arg1 & 0xff;
var var1 = 0x00;
if (var1 & 0xff >= 0x08) {
label_03AC:
var1 = 0x03bb;
func_022F();
var temp1 = arg0 ~ (storage[0x00] / 0x0100 ** 0x14 & 0xffffffffffffffff);
memory[0x00:0x20] = storage[0x00] & 0xffffffff;
memory[0x20:0x40] = 0x01;
var temp2 = keccak256(memory[0x00:0x40]);
storage[temp2] = ((temp1 & 0xffffffffffffffff) * 0x854e9fb4699ed8f22fd89ebe3f17f7f6 * (temp1 & 0xffffffffffffffff) + (temp1 & 0xffffffffffffffff) * 0xd677105721b51a080288a52f7aa48517 & 0xffffffffffffffffffffffffffffffff) | (storage[temp2] & ~0xffffffffffffffffffffffffffffffff);
storage[0x00] = ((storage[0x00] & 0xffffffff) + 0x01 & 0xffffffff) | (storage[0x00] & ~0xffffffff);
return;
} else {
label_035F:
var temp3 = var1;
var temp4 = var0;
arg0 = arg0 ~ ((temp4 & 0xffffffffffffffff) << (temp3 * 0x08 & 0xff));
var0 = (((temp4 & 0xffffffffffffffff) << 0x01) & 0xfe) | ((temp4 & 0xffffffffffffffff) >> 0x07);
var1 = temp3 + 0x01;
if (var1 & 0xff >= 0x08) { goto label_03AC; }
else { goto label_035F; }
}
}
function func_014B(var arg0, var arg1) returns (var arg0) {
arg0 = msg.data[arg0:arg0 + 0x20];
memory[0x20:0x40] = 0x01;
memory[0x00:0x20] = arg0;
return storage[keccak256(memory[0x00:0x40])] & 0xffffffffffffffffffffffffffffffff;
}
function currentIndex() returns (var r0) { return storage[0x00] & 0xffffffff; }
function func_0215() returns (var r0) { return storage[0x00] / 0x0100 ** 0x14 & 0xffffffffffffffff; }
function func_022F() {
var var0 = 0x00;
if (var0 >= 0x40) {
label_0317:
return;
} else {
label_0240:
var var1 = storage[0x00] / 0x0100 ** 0x14 & 0xffffffffffffffff & storage[0x00] / 0x0100 ** 0x0c & 0xffffffffffffffff;
var var2 = var1;
var var3 = 0x01;
if (var3 >= 0x40) {
label_02A9:
storage[0x00] = ((((storage[0x00] / 0x0100 ** 0x14 & 0xffffffffffffffff) >> 0x01) | ((var2 & 0xffffffffffffffff) << 0x3f)) & 0xffffffffffffffff) * 0x0100 ** 0x14 | (storage[0x00] & ~(0xffffffffffffffff * 0x0100 ** 0x14));
var0 = var0 + 0x01;
if (var0 >= 0x40) { goto label_0317; }
else { goto label_0240; }
} else {
label_0288:
var temp0 = var3;
var2 = var2 ~ ((var1 & 0xffffffffffffffff) >> temp0);
var3 = temp0 + 0x01;
if (var3 >= 0x40) { goto label_02A9; }
else { goto label_0288; }
}
}
}
function func_0534() returns (var r0) { return storage[0x00] / 0x0100 ** 0x04 & 0xffffffffffffffff; }
function func_054E() returns (var r0) { return storage[0x00] / 0x0100 ** 0x0c & 0xffffffffffffffff; }
}
The main() function looks especially nasty. But on second glance it actually just is boilerplate code and doesn’t have any purpose but to route calls. Think of it as a big switch case that reads the user’s intended call and jumps to it.
When compiled, function names are lost. All that remains is a function signature, which is a 32-bit hash (well technically it’s the first 4 bytes of the SHA3 hash yadda yadda) of the function name and the type of its arguments. Notice something funny in this code? There’s a function that the decompiler has automatically renamed currentIndex. That’s because it’s a common function name, and its signature exists in a database of signatures so the decompiler was able to automatically identify it. Pretty neat, huh?
This explains the 32 “transaction data” we saw earlier. Each transaction data is an ABI call to a function in the smartcontract. It actually is always the same call.
For instance the first transaction data is :
0xb5b6d2a8000000000000000000000000000000000000000000000000563ec972fd8114ad000000000000000000000000000000000000000000000000000000000000005c
---------- ---------------- --
function signature first argument second argument
Which is akin to calling func_b5b6d2a8(0x563ec972fd8114ad, 0x5c).
We also can retrieve some useful reversing information by comparing the memory at address 0 at the start and at the end of the contract:
Memory slot 0 = 00000000 B42CC50912EA7786 5245205230305421 B42CC50912EA7786 00000000
Memort slot 0 = 00000000 99EB8BB96FF8580A 5245205230305421 B42CC50912EA7786 00000020
-------- ---------------- ---------------- ---------------- --------
padding changing value magic 'reroot' xored value counter
After a bit of reversing, we end up with a Solidity code similar to this:
pragma solidity >=0.4.22 <0.7.0;
contract Storage {
uint32 counter;
uint64 xored;
uint64 reroot;
uint64 updateval;
uint32 junk;
uint256[32] states;
constructor(uint64 seed) public {
counter = 0;
xored = 0x4d30442053515541 ^ seed;
updateval = xored;
reroot = 0x5245205230305421;
}
/* RETRIEVE MEMORY 0 **************************************/
function currentIndex() public view returns (uint32) {
return counter;
}
function getXored() public view returns (uint64) {
return xored;
}
function getReroot() public view returns (uint64) {
return reroot;
}
function getUpdateval() public view returns (uint64) {
return updateval;
}
/* RETRIEVE ENCRYPTED MESSAGE PARTS ************************/
function get_storage(uint256 index) public view returns (uint256) {
return states[index];
}
/* STORE MESSAGE *******************************************/
function do_updateval() private {
uint256 i = 0;
while (i < 64) {
uint64 var1 = updateval & reroot;
uint64 var2 = var1;
uint256 j = 1;
while (j < 64) {
var2 = var2 ^ (var1 >> j);
j++;
}
updateval = (updateval >> 1) | (var2 << 0x3f);
i++;
}
}
function storeMessage(uint64 message, uint8 xorbyte) public {
if (counter >= 32) {
revert();
}
uint64 xorval = xorbyte;
uint8 i = 0;
while (i < 8) {
message = message ^ (xorval << (i * 8)); /* first xor with random byte */
xorval = ((xorval << 1) & 0xfe) | (xorval >> 7);
i++;
}
do_updateval();
uint64 bla = message ^ updateval; /* second xor with deterministic value */
states[counter] = (bla * 0x854e9fb4699ed8f22fd89ebe3f17f7f6 * bla + bla * 0xd677105721b51a080288a52f7aa48517); /* quadratic equation */
counter++;
}
}
So actually not a lot going on here that will need to be inverted :
- there’s a random byte
xorbytereceived with the message that’s used to xor it byte by byte - there are a bunch of values used to xor the message that are updated at each iteration that we can precompute which I named
updateval. Yes, most of my time developping is spent thinking about how to name my variables. - finally there’s an ugly looking quadratic equation modulo 2^128
The first two are trivial but the last one not so much. I started looking around in Sagemath, actually spent quite a bit of time in there but I think it cannot be done with Sage. We have directions to this paper (which I want to thank the author for including, couldn’t have done without it) and it explains rather well how we’ll be solving this equation:
I do not like maths any more than you do, but this was surprisingly easy to translate to code:
# MODULAR QUADRATIC EQUATION SOLVER ############################################
def compute_next_sqrt(prev_sqrt, x, N):
if x % (2**N) == (prev_sqrt * prev_sqrt) % (2**N):
return prev_sqrt
elif (2**(N - 1) + x) % (2**N) == (prev_sqrt * prev_sqrt) % (2**N):
return 2**(N-2) - prev_sqrt
else:
print('oops')
exit(1)
def modsqrt(x, N):
val = 1
for i in range(4, N + 1):
val = compute_next_sqrt(val, x, i)
return val
def solve_modquadratic(c):
a = 0x854e9fb4699ed8f22fd89ebe3f17f7f6
b = 0xd677105721b51a080288a52f7aa48517
DELTA = b * b - 4 * a * c
alpha = a / 2
N = 128+3
alpha_inv = int(gmpy.invert(alpha, 2**N))
delta = modsqrt(DELTA, N)
x1 = ((-b + delta)*alpha_inv/(2**2)) % (2**64)
x2 = ((-b - delta)*alpha_inv/(2**2)) % (2**64)
return (x1, x2)
This is supposed to work as long as a is even and b is odd.
Putting it all together
I wrote a python script to invert all steps and bruteforced the random byte for each message, which is the only random data that is not provided in the challenge input. Yes, you can see the script. Yes, it is ugly.
There are some false positives which are easily removed. Here’s the message it managed to recover:
NO WAY! Personne n'arrivera jamais a dechiffrer ce message sans mon programme de dechiffrement.
Je m'en sers donc de pense-bete xD.
La passphrase de mon export megolm est SSTIC{825145b95c18a865b78f750e153fcc1767f3954e9d629c781ef9150803f3f80
Huh, I’m missing one byte at the end, probably because I didn’t bother reversing the padding function. Gotta admit, I just bf’ed all 16 possibilities of the last byte until I could import the Megolm key.
Conclusion
And this concludes this year’s SSTIC challenge. There was another trivial step which involved steganography, but I’m sparing the reader of this one. Consider step 6 to be the end of the challenge!
I hope you had as much fun reading my writeup as I had doing the challenge. Err come to think of it, I merely hope you had fun ;)
